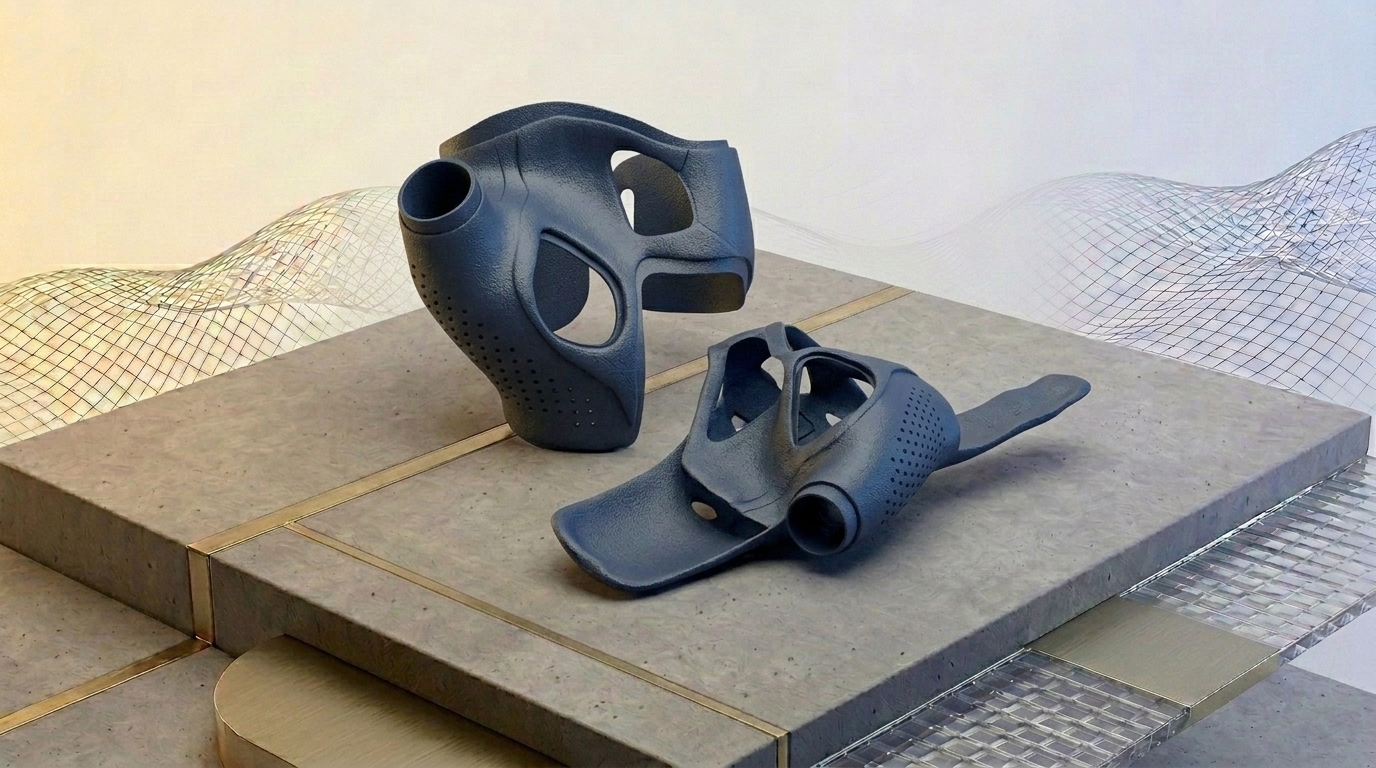

3D ITERATIVE & MULTI-VARIANT ORTHOTIC

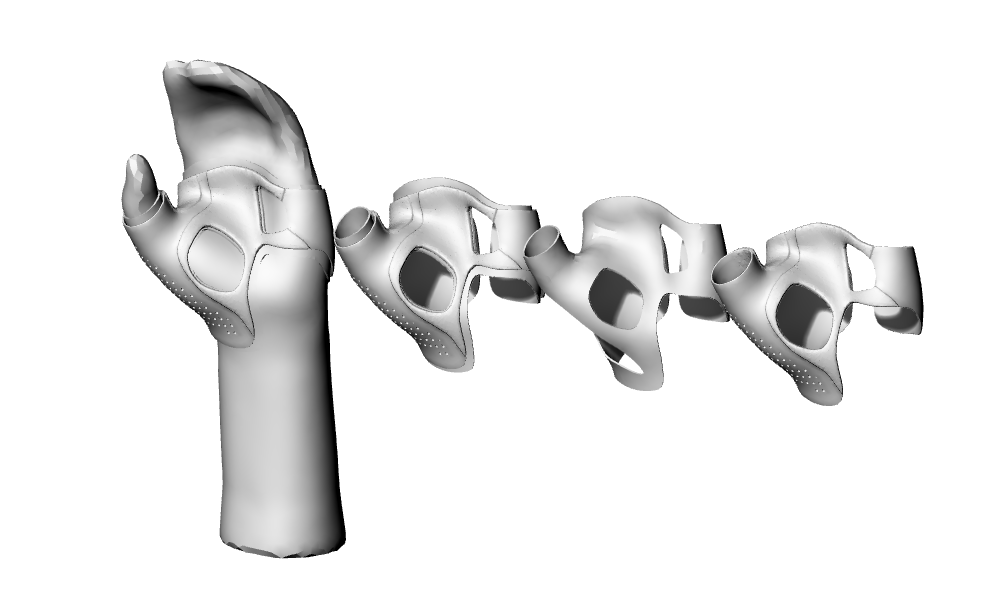

Professional CAD support service providing multiple design iterations and orthotic variants from a single patient scan to assist clinical evaluation and product development.
From patient data to manufacturing-ready CAD
See how Biomech Studio transforms scans, measurements, and prescriptions into production-ready orthopedic CAD models.
How It Works
From Patient Data to Manufacturing-Ready CAD Files
Upload Patient Data
Upload 3D scans, measurements, worksheets, prescriptions, or technical requirements.
- Accepts standard 3D scans (STL, OBJ, PLY)
- Secure HIPAA cloud storage
- Specify custom design requirements
Expert Design Creation
Our orthopedic CAD specialists develop a custom digital model based on your clinical and manufacturing requirements.
- Engineered by certified CAD specialists
- Tailored correction & offloading shapes
- Anatomically aligned parameter tuning
Iterate to Perfection
Review the design and request modifications before final approval.
- Interactive 3D preview in your dashboard
- Simple and intuitive comment tools
- Quick turnaround times for corrections
Manufacturing-Ready Files
Receive manufacturing-ready CAD files in STL, OBJ, STEP, Rhino 3DM, or your preferred format.
- Optimized for 3D printing & CNC milling
- Instant digital download from dashboard
- Compatible with standard CAD software
Pay Per Case
Standard Order — Mainly prepared for single orders without planning.
Biomech Studio Business Profile
“Biomech Studio has been an extension of our lab. The quality, turnaround time and communication are excellent.”
Explore Our Other Services
Professional orthotic CAD & manufacturing services customized for orthopedic labs and clinics worldwide.
Custom 3D Orthopedic Insole
Custom scan-based orthopedic insole CAD development engineered for biomechanical correction, pressure redistribution, and enhanced patient comfort. Manufacturing-ready files optimized for CNC milling, EVA milling, PU molding, and 3D printing workflows.
Custom 3D Orthopedic Shoe Last
Custom orthopedic shoe last CAD development tailored to individual foot morphology, pathological conditions, and therapeutic footwear requirements. Designed for orthopedic footwear manufacturers, pedorthists, and custom shoe production facilities.
