Multi-Layer Multi-Density Orthotic Insole
Industrial PU Injection Orthotic CAD Model for High-Volume Production & CNC Tooling
Key Result
Optimized biomechanical support, improved cushioning performance, manufacturing-ready multi-density geometry, and seamless compatibility with industrial PU molding, CNC machining, and orthopedic footwear production workflows.
Executive Summary
Professional multi-layer, multi-density orthopedic insole CAD model developed for high-volume footwear manufacturing, industrial PU injection molding, and precision CNC tooling applications. The design combines structural biomechanical support with strategically positioned cushioning zones for enhanced comfort, stability, and pressure redistribution.
Interactive 3D CAD Explorer
Interactive 3D CAD Explorer
Load the responsive 3D biomechanical CAD assembly. You can rotate, zoom, and inspect details.
Full Case Details

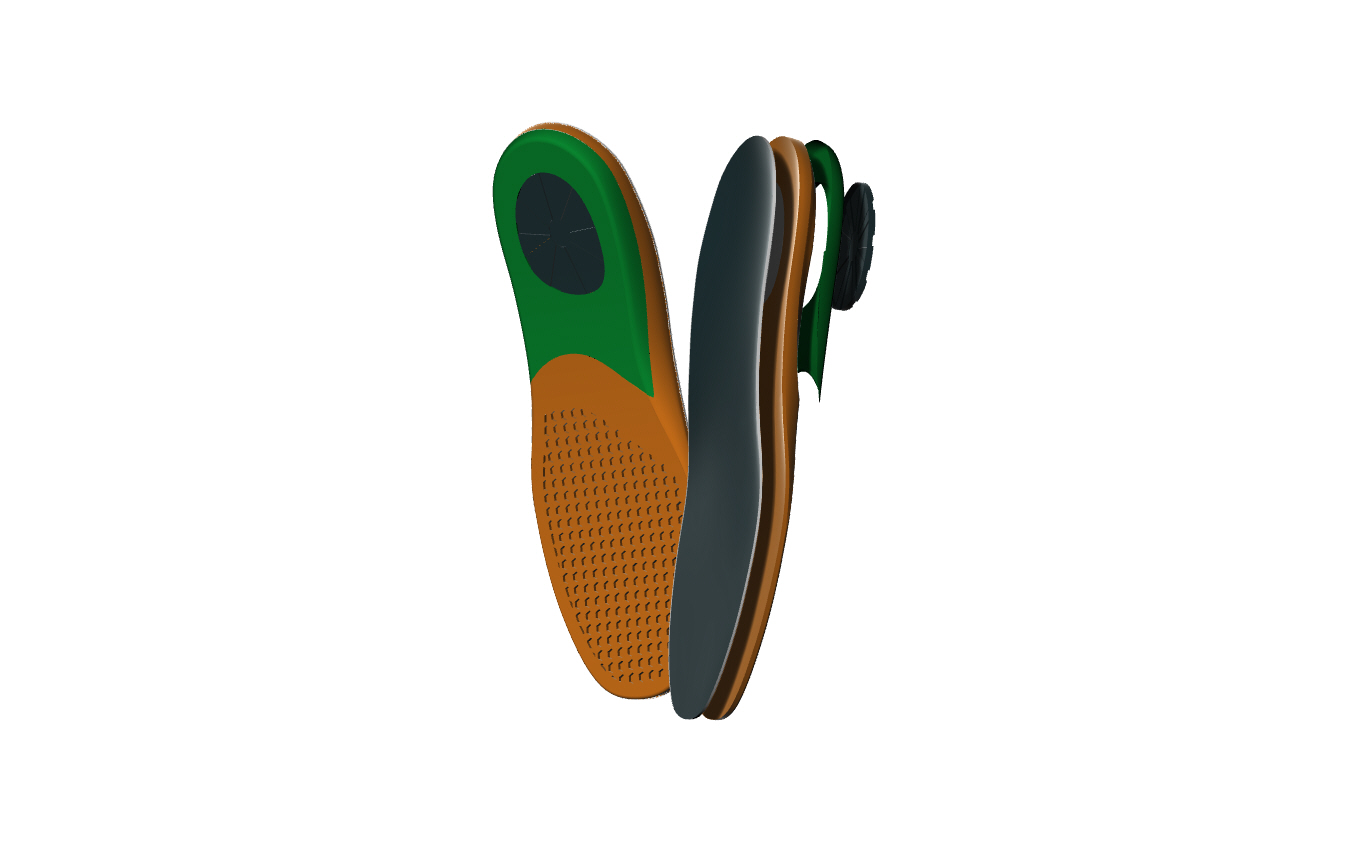

This advanced multi-layer orthopedic insole is professionally engineered for industrial-scale orthopedic footwear manufacturing and precision orthotic production environments. Developed using advanced CAD modeling techniques in Rhino 3D, the design incorporates a sophisticated multi-density architecture that balances rigid structural support with dynamic cushioning performance for enhanced foot biomechanics.
The orthotic features separated material zones specifically designed to support multi-density PU injection molding workflows. A structurally supportive base layer provides stability and alignment control, while integrated high-rebound cushioning sections enhance shock absorption, comfort, and plantar pressure distribution during gait.

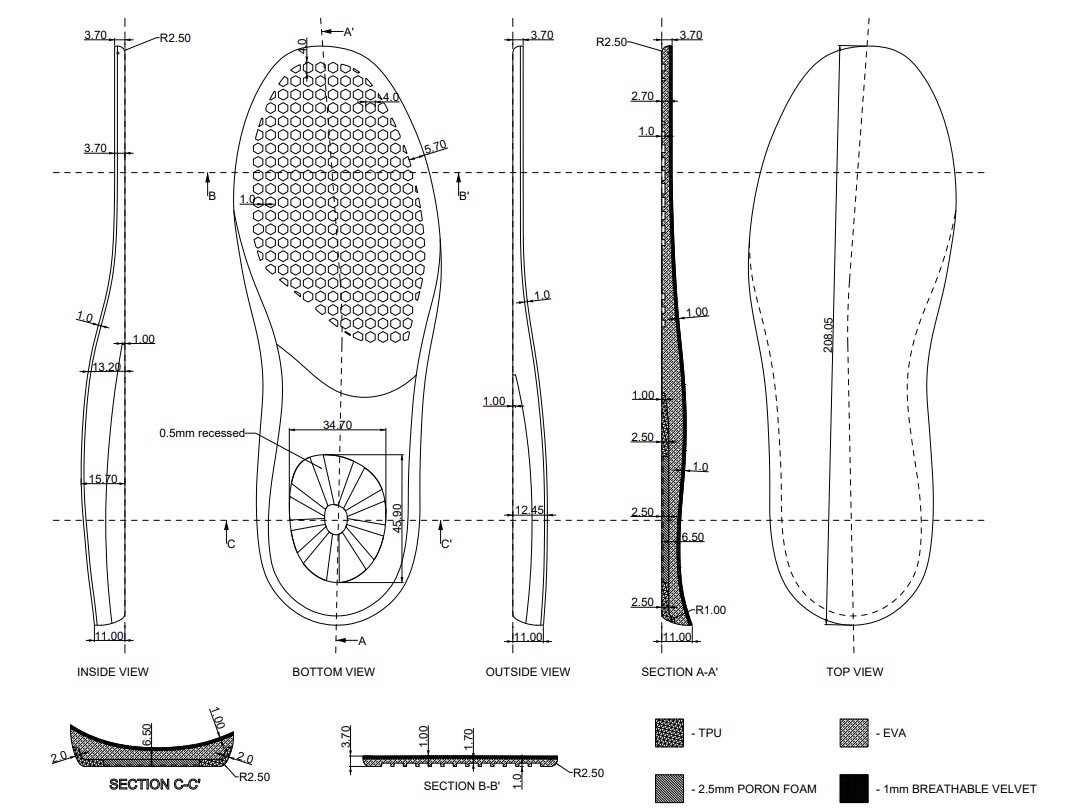

The design includes strategically integrated cushioning elements such as a rearfoot shock-absorption pad and a textured forefoot grid pattern engineered to improve pressure relief, airflow distribution, and underfoot comfort. An anatomical support cage incorporating contoured arch geometry and a deep heel cup enhances calcaneal stability and improves overall rearfoot alignment.
The CAD model is optimized with clean manufacturable surfacing, draft-aware geometry, and smooth transitions suitable for industrial mold development, CNC carving, and automated production workflows. The watertight geometry ensures reliable compatibility with orthopedic CAD/CAM systems and mass-production manufacturing environments.
Key Manufacturing & Design Features
- Multi-layer multi-density orthopedic architecture
- Supportive structural base with integrated cushioning zones
- Heel shock-absorption pad for impact reduction
- Textured forefoot grid for pressure redistribution and comfort
- Anatomical arch support and heel stabilization cage
- Draft-optimized surfaces for mold manufacturing
- Smooth production-ready CAD topology
Manufacturing Compatibility
- Industrial PU injection molding ready
- CNC carving and tooling compatible
- Fully compatible with orthopedic CAD/CAM systems
- High-volume footwear production optimized
- 3D manufacturing workflow compatible
Applications
- Custom orthopedic insoles
- Industrial footwear manufacturing
- PU injection mold development
- Orthotic CAD/CAM production
- Biomechanical footwear engineering
- B2B orthopedic footwear workflows
